Home » Product Center » A4VSO Series Variable Piston Pump
Foshan Chuangli Le Hydraulic Co., Ltd. specializes in R & D and manufacturing of hydraulic components. The products cover hydraulic pumps, hydraulic valves, hydraulic cylinders, hydraulic power units, etc., which are widely used in construction machinery, metallurgical equipment, shipbuilding, automobile production lines and other fields. Source factory direct supply, quality assurance, support non-standard customization.
Foshan Chuanglile Hydraulic Co., Ltd.
Email: creales@163.com
Address: Nanxing Industrial Zone, Guicheng, Nanhai District, Foshan City

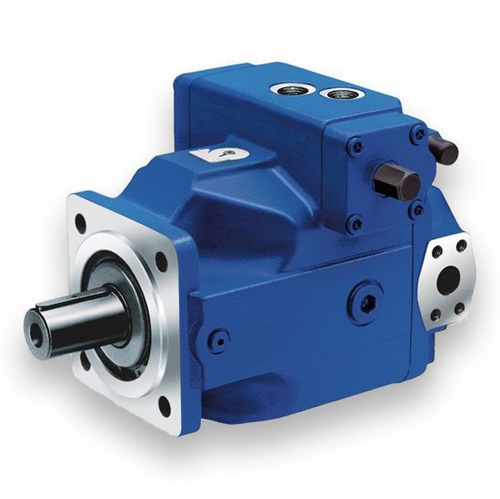

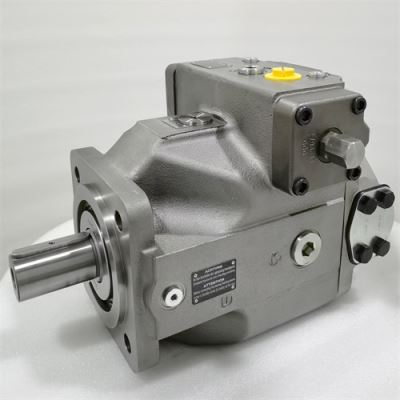

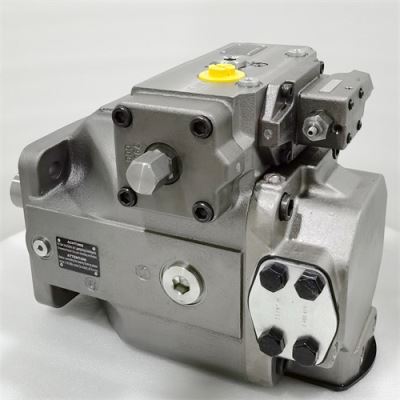

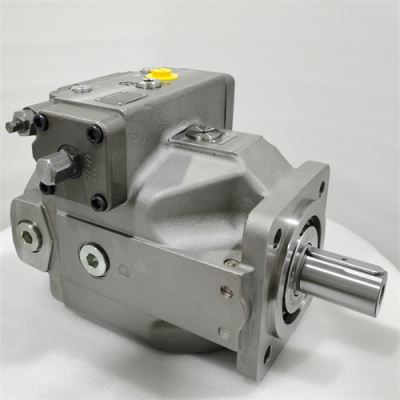

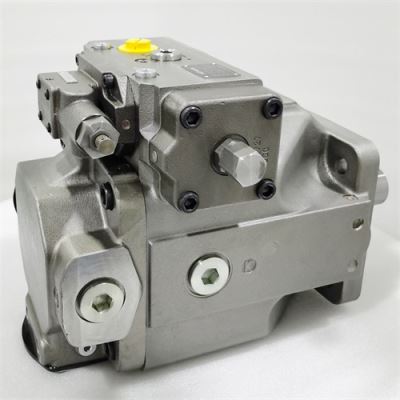

| Series | A4VSOSeries variable plunger pump |
Specifications | 40、71、125、180、250、300、355、370、500 | |
Series 1, Series 2 and Series 3 | ||
Work stress | Rated pressure 35MPa, peak pressure 42MPa | |
Control method: Pressure control DR Flow Control FR hyperbolic power control LR Manual Control MA Electric motor control EM Position-dependent hydraulic control EM Flow-dependent hydraulic control HM Hydraulic control HS with servo/proportional valve Electronic proportional control EO Pressure-dependent hydraulic control HD Secondary control of speed control DS | Characteristics | - Axial piston variable pump of swash plate construction for hydrostatic transmission of open circuits - The flow rate is proportional to the input speed and displacement. By adjusting the swash plate, the flow rate can be steplessly adjusted - Design of Swash Plate with Slot Control - Displacement stepless adjustable - Excellent oil absorption performance - Allowable rated working pressure 350bar - Low noise level - Long service life - The drive shaft can absorb axial and radial loads - High power/weight ratio - Standard structure - Short control time - Shaft drive and pump can be used in combination - swash plate pendulum angle indicator - Installation position optional - In the case of reduced operating parameter values, HF oil can be used to work |
Safety Information
-Pump A4VSO is designed to operate in open circuit.
-System design, installation and commissioning need to be performed by trained technicians and distributors.
-All hydraulic oil ports can only be used for fastening hydraulic maintenance lines.
-Tightening torque:
· All tightening torques listed in this sample are maximum values and cannot be exceeded (maximum values for internal threads in castings). Observe the information provided by the manufacturer regarding the maximum allowable tightening torque of the accessories used.
· For fastening screws according to DIN 13, it is recommended to check the allowable tightening torque according to VDI 2230 (issued in 2003) in all cases.
-During or shortly after operation of the pump, the housing and in particular the coil may be particularly hot. Take appropriate safety precautions (e. g., wear protective clothing).
-All data and information provided with the product must be followed.
Installation precautions
Installation location:
Optional. During commissioning, the pump housing must be filled with oil and filled up during operation.
In order to reduce the operating noise level, all connecting lines (suction, pressure and tank drain lines) must be separated from the tank using flexible elements.
The use of check valves in tank drain lines must be avoided.
The tank drain line must be connected directly back to the tank without changing the line size. There may be abnormal conditions, please consult us in time.
Can be installed vertically and horizontally.
