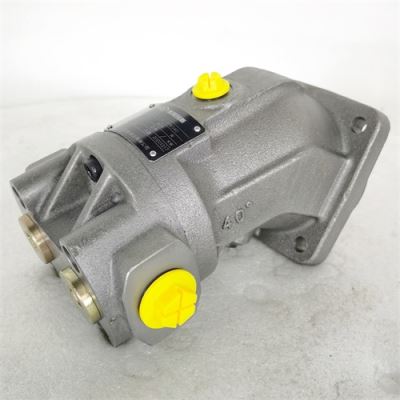

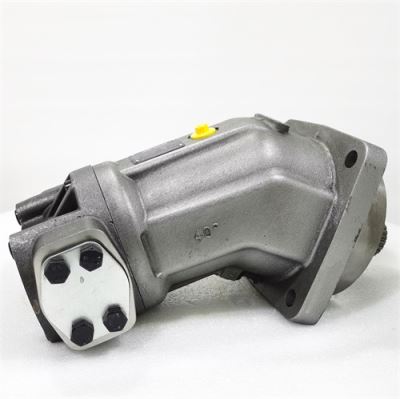

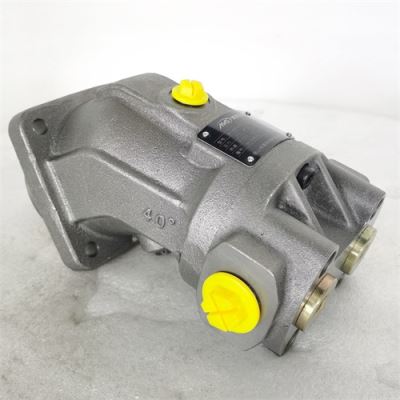

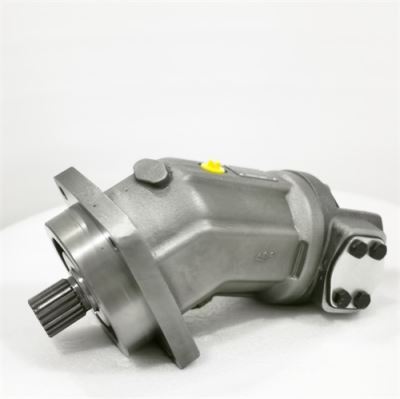

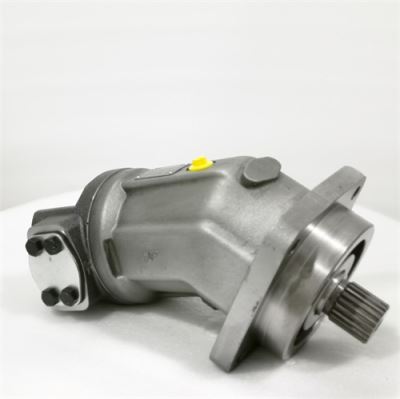

A2FO series quantitative plunger pump

Classification: Rexroth series hydraulic pump Product Model: A2FO

Foshan Chuangli Le Hydraulic Co., Ltd. specializes in R & D and manufacturing of hydraulic components. The products cover hydraulic pumps, hydraulic valves, hydraulic cylinders, hydraulic power units, etc., which are widely used in construction machinery, metallurgical equipment, shipbuilding, automobile production lines and other fields. Source factory direct supply, quality assurance, support non-standard customization.

Foshan Chuanglile Hydraulic Co., Ltd.

Email: creales@163.com

Address: Nanxing Industrial Zone, Guicheng, Nanhai District, Foshan City

Product Description

	Series	A2FOSeries axial piston quantitative pump
	Specifications	10、12、16、23、28、32、45、56、63、80、90、107、125、160、180、200、250、355、500、710、1000. Series 6.
	Work stress	Rated pressure 35MPa, peak pressure 400MPa.
	Characteristics	-Inclined axial quantitative pump is suitable for hydrostatic drive of open circuit; -Suitable for walking machinery or industrial fields; -The output flow is proportional to the driving speed and displacement; -The design of the drive shaft bearing enables the application area to reach the desired service life; -A variety of specifications can be matched with each actual drive; -favorable power/weight ratio; -Compact and economical structure; -Optimal volumetric efficiency; -One-piece plunger design with plunger ring.

Safety instructions:

-A2FO pumps are designed for use in open circuits.

-The project planning, installation and commissioning of the axial plunger unit must be carried out by qualified personnel.

-Please read the corresponding instruction manual completely before using the axial plunger unit. If necessary, it can be obtained from Bosch Rexroth.

-Risk of burns from the axial plunger unit during and shortly after operation. Appropriate safety measures should be taken (e. g. wearing protective clothing).

-The characteristics of the axial plunger unit may change due to different operating conditions (operating pressure, oil temperature).

-Working line port:

· The oil port and fixing thread are designed according to the maximum specified pressure. Machine or system manufacturers must ensure that the safety factors of connecting components and pipelines meet the specified operating conditions (pressure, flow rate, hydraulic fluid, and temperature).

· The working line ports and functional ports are only used for hydraulic lines.

-The data and instructions contained herein must be followed.

-This product cannot be approved as a component of a general-purpose machinery safety concept compliant with ISO 13849.

-An overflow valve will be installed in the hydraulic system.

-Use the following tightening torque:

· Joint:

See manufacturer's instructions for tightening torque of the joint used.

· Mounting bolt:

For mounting bolts with ISO metric threads in accordance with DIN 13 and threads in accordance with ASME B1.1, we recommend checking the tightening torque of each box according to the VDI 2230.

· Threaded hole of axial plunger unit:

The maximum permissible tightening torque MG max is maximum for threaded holes and must not be exceeded.

· Locking screw:

For metal locking screws supplied with the axial plunger unit, the tightening torque MV required for the locking screw shall be used.

A2FO_订货代码_型号_选型
