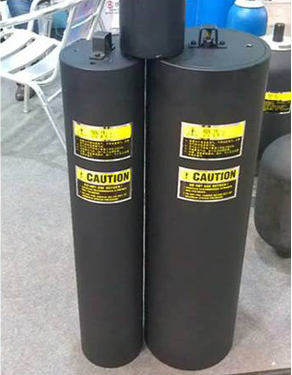

European standard hydraulic piston accumulator

Category: Hydraulic accumulator Product model: EK2110/330-G32-Y

Foshan Chuangli Le Hydraulic Co., Ltd. specializes in R & D and manufacturing of hydraulic components. The products cover hydraulic pumps, hydraulic valves, hydraulic cylinders, hydraulic power units, etc., which are widely used in construction machinery, metallurgical equipment, shipbuilding, automobile production lines and other fields. Source factory direct supply, quality assurance, support non-standard customization.

Foshan Chuanglile Hydraulic Co., Ltd.

Email: creales@163.com

Address: Nanxing Industrial Zone, Guicheng, Nanhai District, Foshan City

Product Description

1. Model description
EK 210-10 / 330-G32-Y

1 2 3 4 5 6

1. Code: EK
European standard hydraulic piston accumulator PED (CE mark)
2. Nominal inner diameter: mm
3. Nominal volume, L
4. Nominal pressure, Bar
5. Connection type: M-metric thread; G-inch pipe thread;
S-SAE thread; N-NPT thread;
F-Flanged connection;
6. Working medium: hydraulic oil: Y
Emulsion: R
Water: H

Tag example:
The inner diameter of the piston accumulator is 210, the nominal pressure is 330 bar, the nominal volume is 10L, the connection type is G2 "threaded connection, and the piston accumulator with hydraulic oil as the working medium is marked as EK210-10/330-G32-Y.

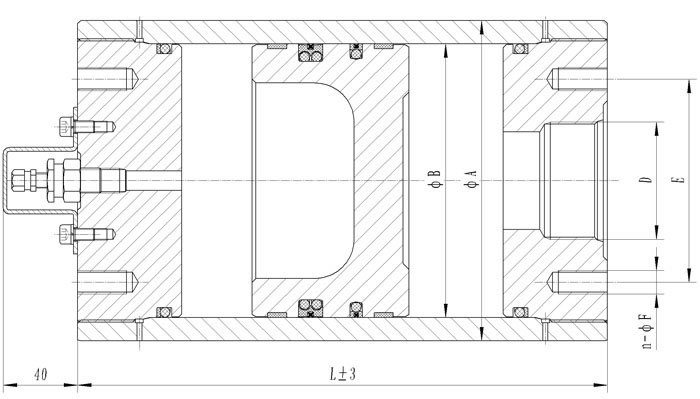

2. Type and size
