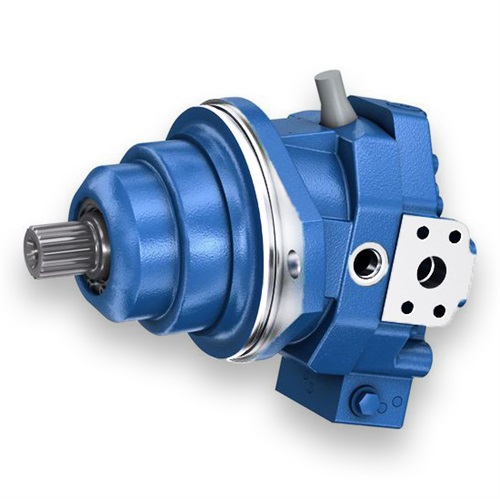

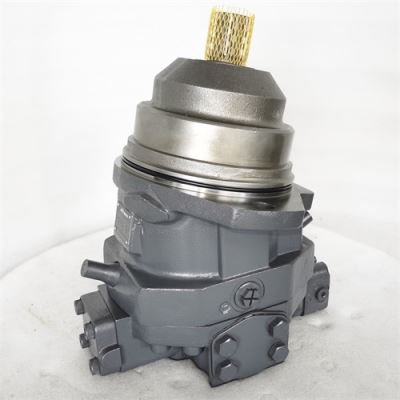

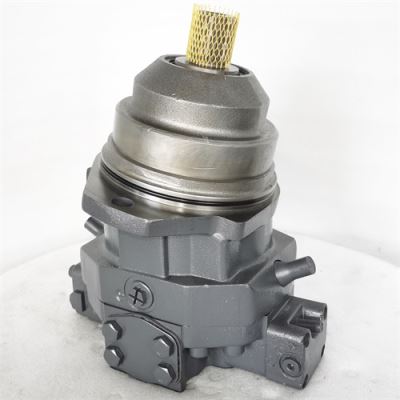

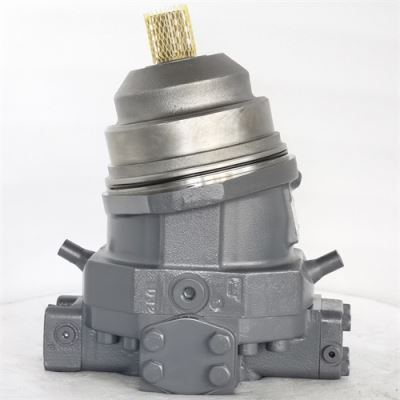

A6VE Series Variable Piston Motor

Classification: Rexroth series motor Product model: A6VE

Foshan Chuangli Le Hydraulic Co., Ltd. specializes in R & D and manufacturing of hydraulic components. The products cover hydraulic pumps, hydraulic valves, hydraulic cylinders, hydraulic power units, etc., which are widely used in construction machinery, metallurgical equipment, shipbuilding, automobile production lines and other fields. Source factory direct supply, quality assurance, support non-standard customization.

Foshan Chuanglile Hydraulic Co., Ltd.

Email: creales@163.com

Address: Nanxing Industrial Zone, Guicheng, Nanhai District, Foshan City

Product Description

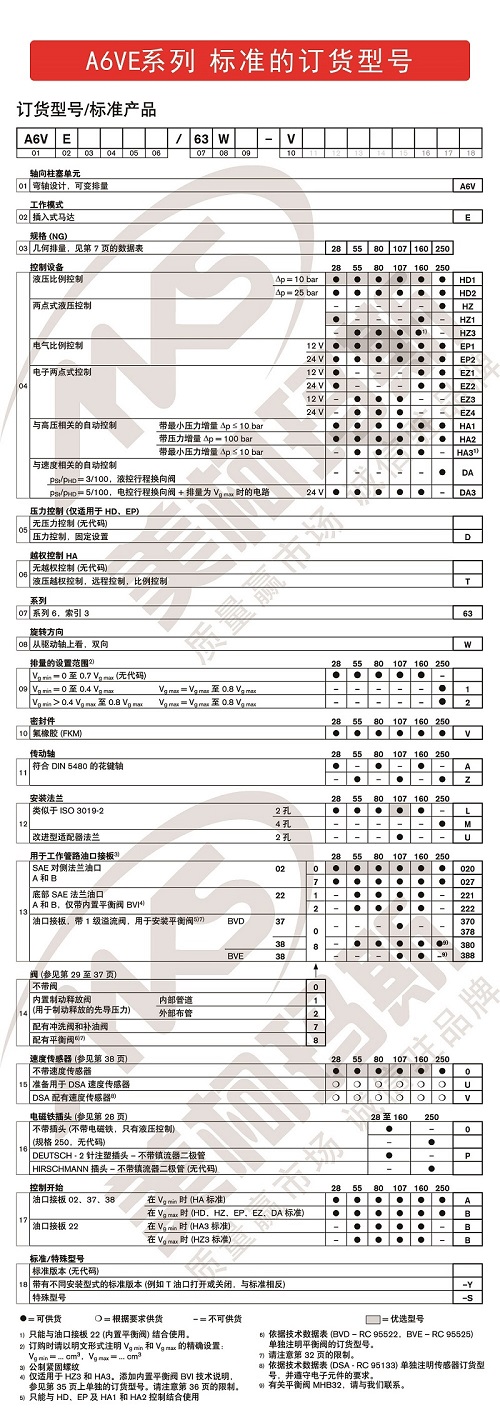

	Series	A6VE Series Variable Piston Motor
	Specifications	28、55、80、107、160 、250
	Specifications	Column 63.
	Work stress	35MPa, peak pressure: 40MPa
Control method: HD-hydraulic proportional control EP-Electrical Proportional Control HZ-two-point hydraulic control EZ-Electronic two-point control HA-Automatic control related to high pressure DA-speed-dependent automatic control Electronically controlled stroke reversing valve (applicable to DA)	Characteristics	-The variable plug-in motor is equipped with an axial conical piston rotor set of inclined shaft design for hydrostatic transmission in open and closed circuits -Integration in the mechanical gearbox due to the grooved mounting flange in the center of the housing (very space-saving structure) -Easy to install, just plug into the mechanical gearbox (no need to follow the configuration technical instructions) -Test components ready for installation -Especially for walking machinery applications -The displacement can be changed infinely from Vg max to Vg min = 0. -The wide control range enables the variable displacement motor to meet the requirements for high speed and high torque. -The output speed depends on the flow rate of the pump and the displacement of the motor. -The output torque will increase as the pressure difference between the high pressure side and the low pressure side and the displacement continue to increase.

Safety Instructions

-A6VE motors are designed for use in open and closed circuits.
-The project planning, installation and commissioning of the axial plunger unit must be carried out by qualified personnel.
-Please read the corresponding instruction manual completely before using the axial plunger unit. If necessary, it can be obtained from Bosch Rexroth.
-During operation and shortly after, the axial piston unit (particularly the solenoid) may pose a burn hazard. Appropriate safety measures should be taken (e.g., wearing protective clothing).
-The characteristics of the axial plunger unit may change due to different operating conditions (operating pressure, oil temperature).
-Working line port:
-The oil port and fixed thread are designed for the maximum specified pressure. Machine or system manufacturers must ensure that the safety factors of connecting components and pipelines meet the specified operating conditions (pressure, flow rate, hydraulic fluid, and temperature).
-The working and functional oil ports are only used for hydraulic lines.
Safety Instructions
-The data and instructions contained herein must be followed.
-This product cannot be approved as a component of a general-purpose machinery safety concept compliant with ISO 13849.
-Use the following tightening torque:
-Connectors:
See manufacturer's instructions for tightening torque of the joint used.
-Mounting bolts:
For mounting bolts with metric ISO threads according to DIN 13, we recommend a separate check of the tightening torque according to the VDI 2230.
-Threaded bore of axial plunger unit:
The maximum allowable tightening torque, MG max, is the upper limit for threaded holes and must not be exceeded. See the table below for numerical values.
-Locking screws:
For the metal lock screws supplied with the axial piston unit, the specified tightening torque MV for the lock screws shall be applied. There is
