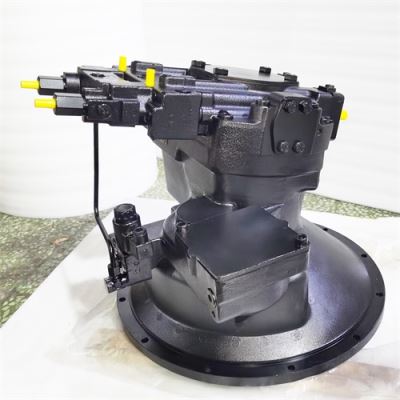

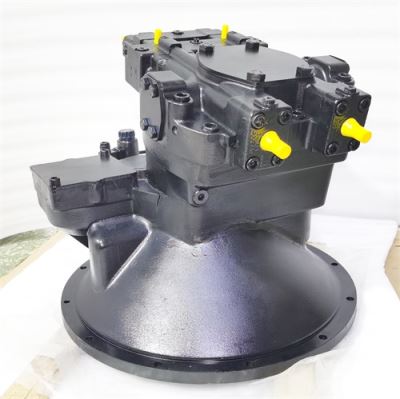

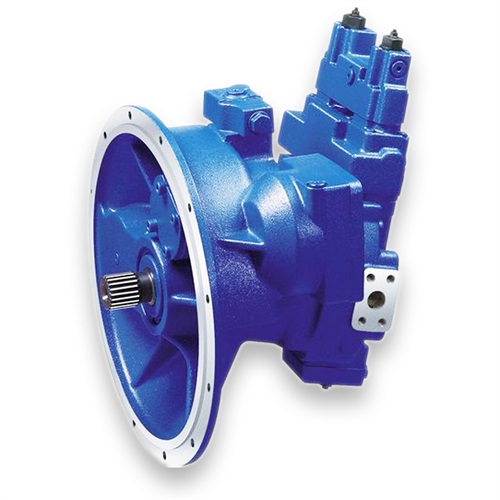

A8VO Axial Variable Double Pump

Product Description

• 	Series	A8VO axial piston variable dual pump
  	Specifications	55 80 107 140 200
  	Work stress	Nominal pressure 350 bar Peak pressure 400 bar
  Control equipment Independent power controller without power override control with hydraulic travel limiter (positive control) and external pilot oil pressure supply with load sensing with hydraulic power coupling and load sensing and hydraulic travel limiter (negative control) Hydraulic travel limiter (positive control) and external pilot oil pressure supply Hydraulic travel limiter (negative control) and external pilot oil pressure supply Independent power controller with power override via pilot pressure hydraulic stroke limiter (positive control) and external pilot oil pressure supply with load sensing with hydraulic power coupling and load sensing and hydraulic stroke limiter (negative control) Hydraulic stroke limiter (positive control) and external pilot oil pressure supply Hydraulic stroke limiter (negative control) and external pilot oil pressure supply Electrical control, with proportional electromagnet (positive control) U = 24 V	Characteristics	-The variable dual pump is equipped with two axial conical plunger rotating assemblies with inclined shaft design for hydrostatic transmission in an open circuit -The flow rate is proportional to the input speed and displacement, and changes steplessly within the range of qv max to qv min(0) -The pump is suitable for direct installation on the flywheel housing of a diesel engine -The auxiliary pump and the two oil circuits share a suction port -Powerful control program, can realize different control and adjustment functions -Independent power controller -Built-in auxiliary pump with pressure relief valve, optional additional pressure relief valve -Various models of power output devices can be used to install axial pistons and gear pumps -Excellent power/weight ratio -Long service life

   Technical Data Sheet

  Series 61/63

  Specifications 55...200

  Nominal pressure 350 bar

  Peak pressure 400 bar

  for open loop open loop

  Characteristics

  -The variable dual pump is equipped with two axial conical plunger rotating assemblies with inclined shaft design for hydrostatic transmission in an open circuit

  -The flow rate is proportional to the input speed and displacement, and changes steplessly within the range of qv max to qv min(0)

  -The pump is suitable for direct installation on the flywheel housing of a diesel engine

  -The auxiliary pump and the two oil circuits share a suction port

  -Powerful control program, can realize different control and adjustment functions

  -Independent power controller

  -Built-in auxiliary pump with pressure relief valve, optional additional pressure relief valve

  -Various models of power output devices can be used to install axial pistons and gear pumps

  -Excellent power/weight ratio

  -Long service life

  Safety Instructions

  -A8VO pumps are designed for use in open circuits.

  -Project planning, assembly and commissioning of pumps must be carried out by qualified personnel.

  -The working line oil port and the functional oil port are only designed to install hydraulic lines.

  -The motor (especially the electromagnet) may have a risk of burns during and shortly after operation. Take appropriate safety precautions, such as wearing protective clothing.

  -The characteristics of the pump may vary, depending on the operating conditions of the pump (operating pressure, oil temperature).

  -Tightening torque:

  -The tightening torques indicated in this technical data sheet are maximum values and must not be exceeded (maximum thread torque).

    The manufacturer's instructions for the maximum permissible tightening torque of the installation tools used must be observed!

  -For DIN 13 fixing screws, we recommend that the tightening torque be checked separately according to the 2003 version VDI 2230.

  -The data and information provided here must prevail.

  Installation Instructions

  Safety Instructions

  During commissioning and operation, the axial piston unit must always be filled with hydraulic oil and purged of air. The above precautions should also be observed when the deactivation time is relatively long, because

  The system may be drained via hydraulic lines.

  The housing drain chamber is connected internally to the oil suction chamber. It is not necessary to connect the case drain line to the reservoir.

  Pay attention to the specifications 200 the characteristics of the flushing fluid. (Port R4)

  In all operating conditions, the suction line must be fed below the minimum oil level in the tank.

  The minimum suction pressure at port S must not fall below 0.8 bar.

  Installation location

  Axis horizontal.

  Installation below fuel tank

  Installation below the oil tank means that the pump should be installed below the minimum oil level of the oil tank.
