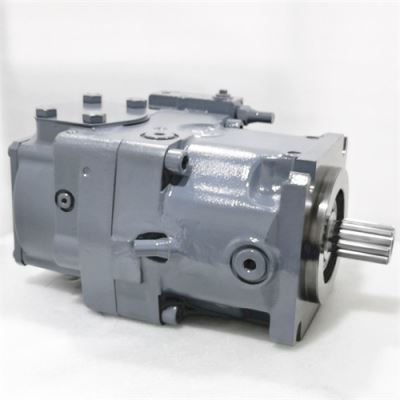

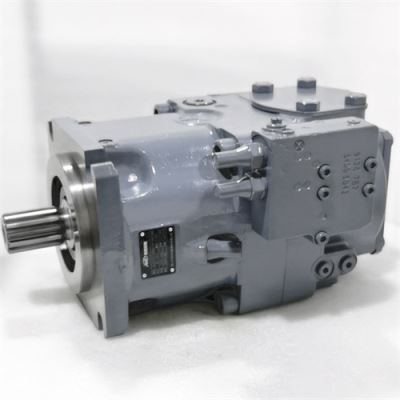

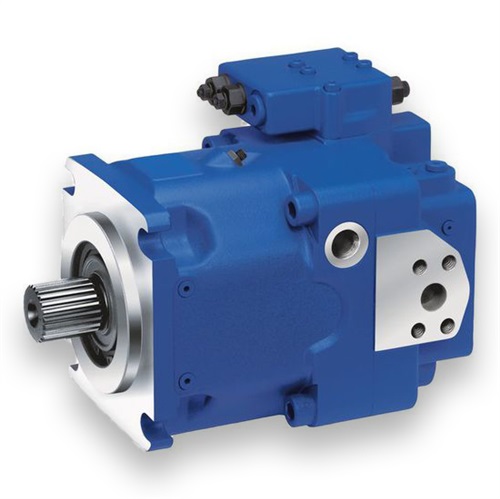

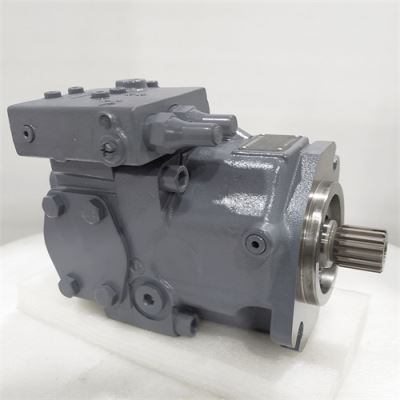

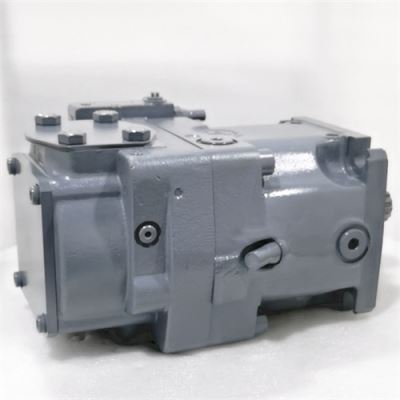

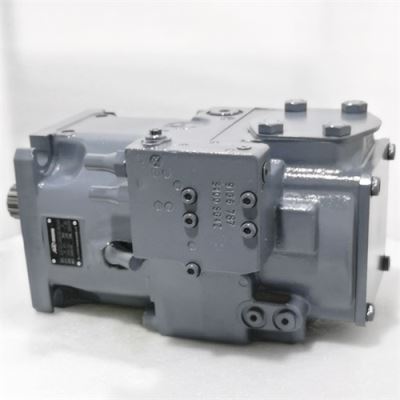

A11VO series variable plunger pump

Classification: Rexroth series hydraulic pump Product model: A11VO(LO)

Foshan Chuangli Le Hydraulic Co., Ltd. specializes in R & D and manufacturing of hydraulic components. The products cover hydraulic pumps, hydraulic valves, hydraulic cylinders, hydraulic power units, etc., which are widely used in construction machinery, metallurgical equipment, shipbuilding, automobile production lines and other fields. Source factory direct supply, quality assurance, support non-standard customization.

Foshan Chuanglile Hydraulic Co., Ltd.

Email: creales@163.com

Address: Nanxing Industrial Zone, Guicheng, Nanhai District, Foshan City

Product Description

	Series	A11VOaxial piston variable pump
	Specifications	40、60、75、95、130、145、190、260 Series 1
	Work stress	Common pressure 400bar(40Mpa), peak pressure 450bar(45Mpa)
Control method: LRPower Control DRconstant pressure control HDHydraulic control, related to pilot pressure EPelectric proportional control	Characteristics	Axial piston variable displacement pump with swash plate structure for open circuitHydrostatic transmission in hydraulic systems. Mainly designed for the application of walking operation machinery. When the tank is pressurized or the optional built-in filling pump (impeller) is used, the pump is operated in the automatic starting filling state. Various control options are available to meet the requirements of various applications. The power control option is externally adjustable, even when the pump is running. The through-shaft drive is suitable for joining gear pumps and axial piston pumps, I .e. 100% through-shaft drive. The output flow is proportional to the drive speed and can be in q_{V max} and q_{In min} Stepless change between = 0.

Safety Instructions
-A11VO pumps are designed for use in open circuits.
-Project planning, assembly and commissioning of axial plunger elements must be carried out by qualified personnel.
-The working line oil ports and functional oil ports are only designed for hydraulic lines.
-There is a risk of burns to the axial plunger elements (especially the electromagnets) during and shortly after operation. Appropriate safety measures should be taken (e. g. wearing protective clothing).
-Depending on the different operating conditions (operating pressure, oil temperature) of the axial plunger element, the characteristics may change.
-Pressure port:
Oil ports and fixed threads are designed for maximum specified pressure. The machine or system manufacturer must ensure that the safety factors of the connecting elements and lines meet the specified operating conditions (pressure, flow, hydraulic oil, temperature).
-The data and instructions contained herein must be followed.
-The following tightening torques are applied:
· Threaded bore of axial plunger element:
The maximum permissible tightening torque MG max is maximum for threaded holes and must not be exceeded.
· Joint:
See manufacturer's instructions for tightening torque of the joint used.
· Fixing screws:
For fixing screws that meet DIN 13, we recommend a separate check of the tightening torque according to the VDI 2230.
· Locking screw:
For the metal locking screw supplied with the axial plunger element, the tightening torque MV required for the locking screw is applied.
-The product component is not certified in accordance with the general machine safety concept of DIN EN ISO 13849.
